SPECS
Dimensions/weight
Console:15.98" W x 2.56" H x 10.16" D (8.8 lbs)
OmniJewel speakers (each):1.84" W x 5.77" H x 1.84" D (0.78 lbs)
OmniJewel center speaker:21.34" W x 1.9" H x 1.84" D (2.66 lbs)
Acoustimass wireless bass module:11.61" W x 12.8" H x 11.61" D (30 lbs)
Wireless receivers for rear speakers:6.54" W x 1.6" H x 3.07" D (9.8 oz)
Additional details
Supported audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, Multichannel PCM.
Video source compatibility: Support for six 4K/60 video sources (HDMI 2.0/HDCP 2.2)
Inputs and outputs
Rear panel of the console
1 HDMI™ output with Audio Return Channel (ARC)
5 HDMI inputs
2 optical digital audio connections
2 coaxial digital audio connections
2 analog L/R audio inputs
1 3.5 mm connection for the Acoustimass module
1 data port
1 IR repeater port
1 Ethernet port for SoundTouch and software updates via a network
1 USB connection for software updates only
Front of the console
1 HDMI input
1 3.5 mm jack for ADAPTiQ system and headphones
1 power button
1 source button
1 system setup button
What's in the box
Console
4 OmniJewel speakers
OmniJewel center speaker
Acoustimass wireless bass module

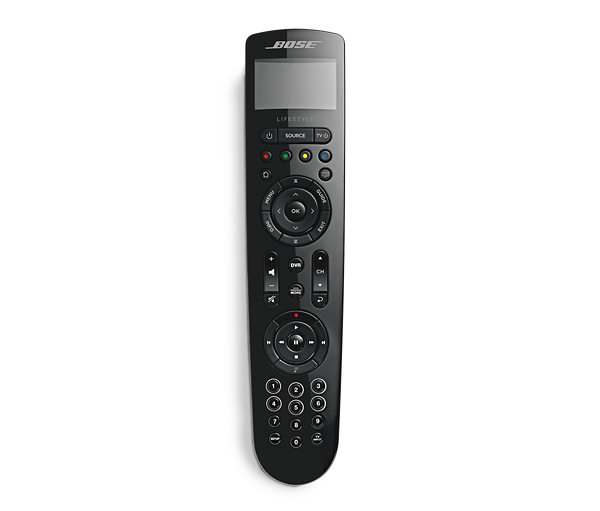

Universal remote control
Front speaker cable
2 rear speaker cables
Center speaker cable
2 wireless receivers
ADAPTiQ headset
IR emitter
HDMI cable
4 AA batteries
Console power supply
4 Power cords
4 Adhesive feet
Screwdriver
Owner’s guide
